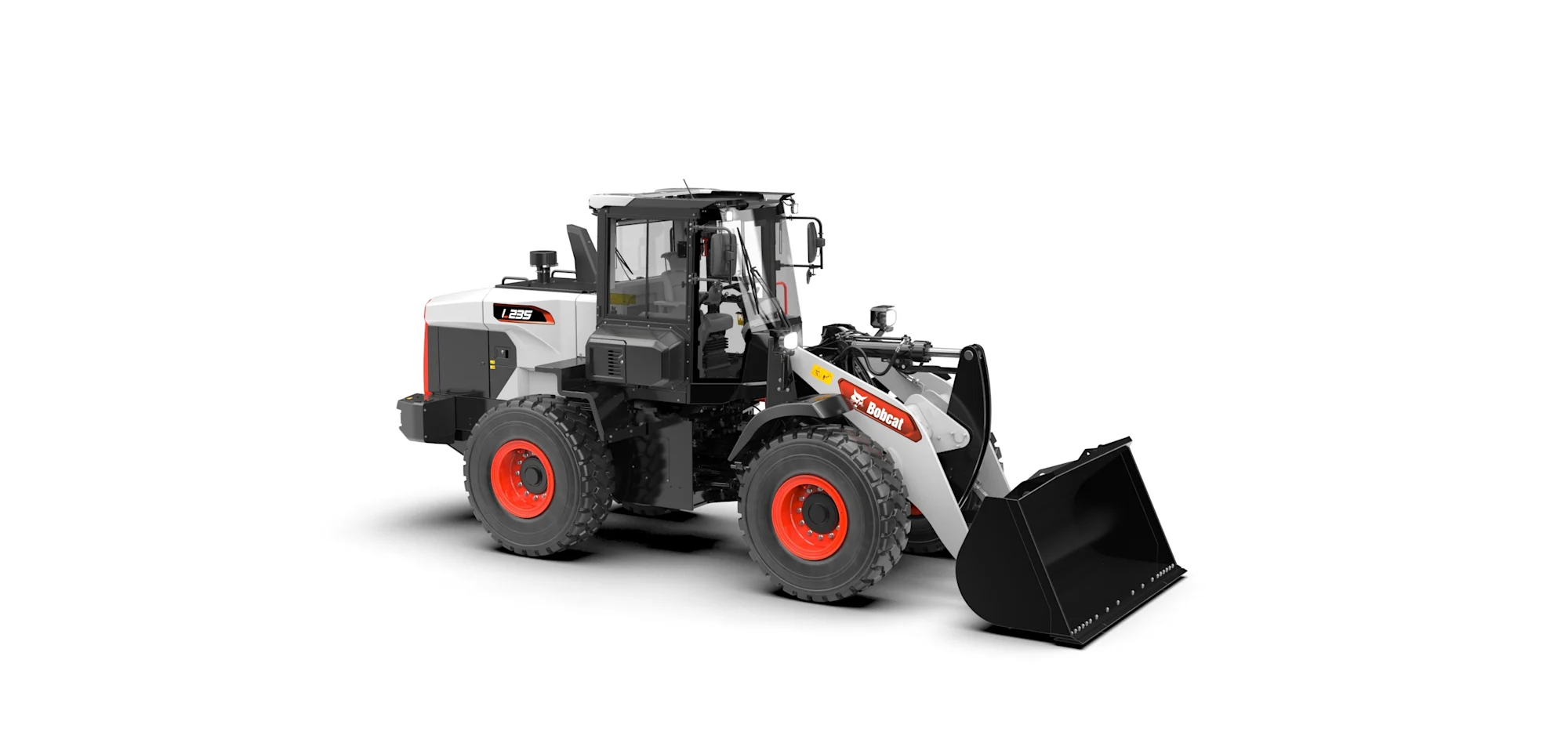

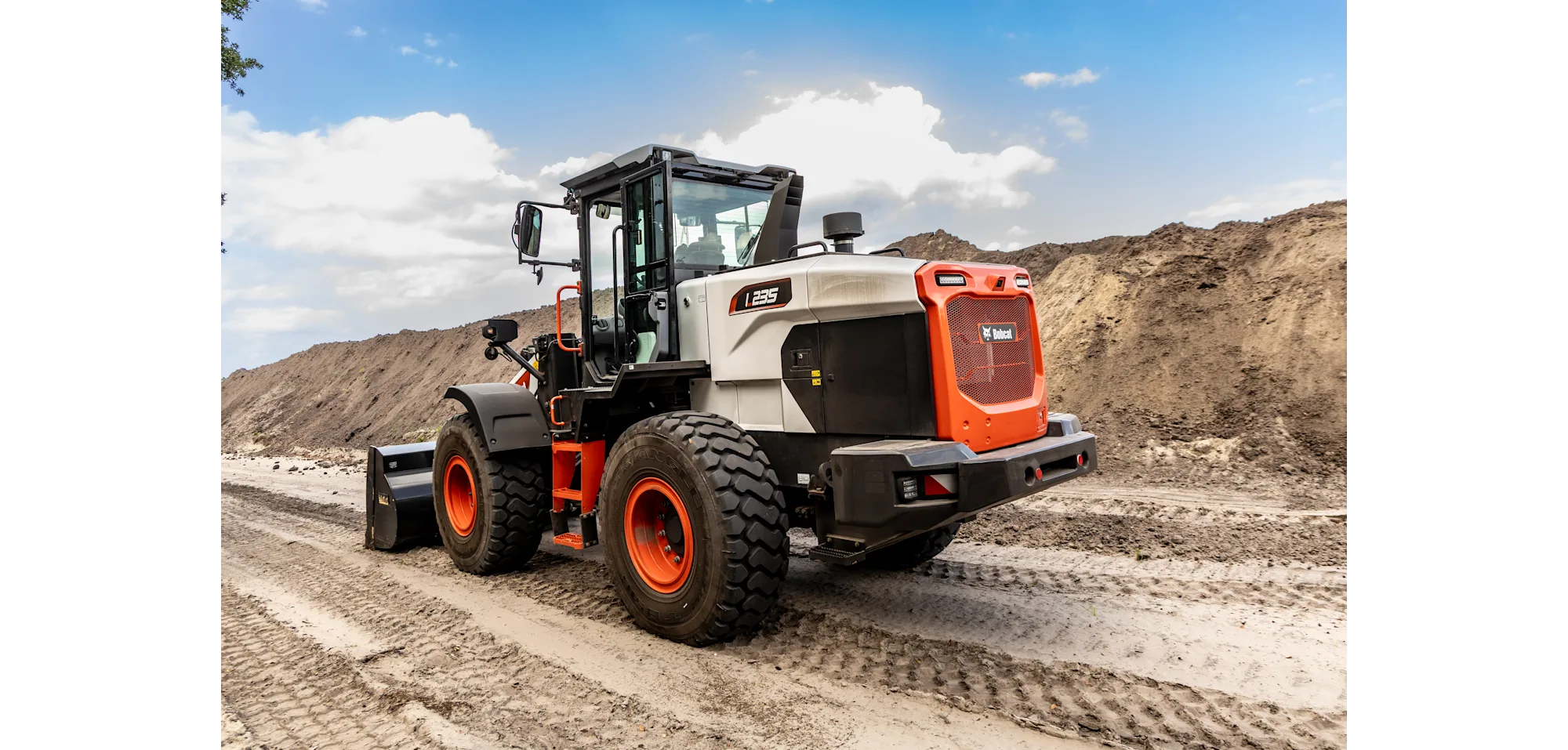

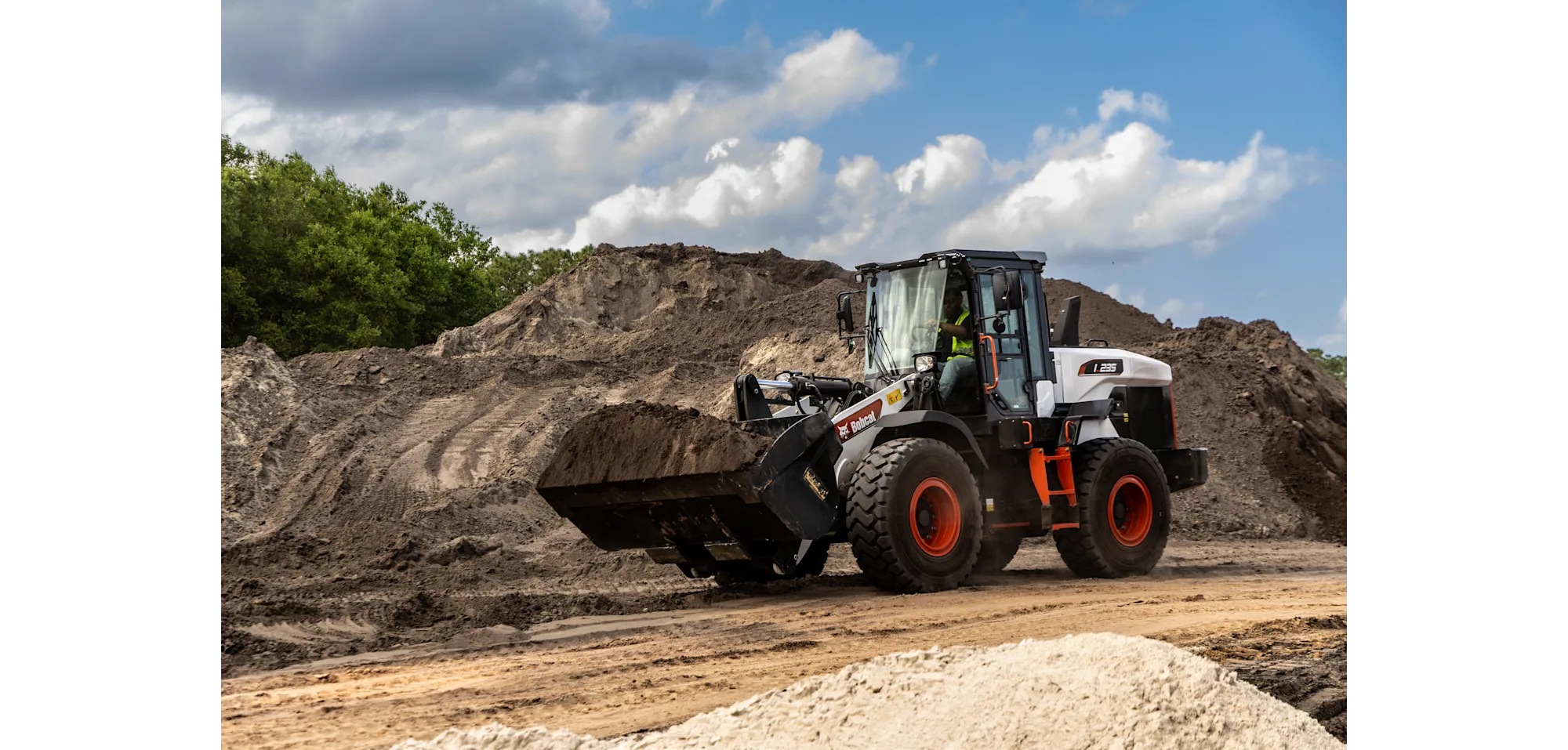

Bobcat L235 Large Wheel Loader
The Bobcat® L235 large wheel loader combines powerful lift performance, fuel-efficient operation and premium comfort to confidently tackle big, high-volume material handling jobs. Move more material efficiently thanks to a large bucket capacity and durable, heavy-duty axles. Non-DPF engine minimizes downtime from regeneration and reduces long-term maintenance costs. Three powerful transmission modes customize speed control and performance for unique working conditions
159 hp
Horsepower
29488 lbs
Operating Weight
23853 lbs
Tipping Capacity
Bobcat L235 Large Wheel Loader
Let's Get Started
"*" indicates required fields
Bobcat L235 Large Wheel Loader Specs & Add-Ons
** Listed specs based on machine base model. Actual specs may vary depending on model and options **
Key Specifications
Diesel Exhaust Fluid (DEF) Capacity 7.9 gal
Fuel Tank 62.1 gal
Main Pump Pressure 3626 psi
3rd Spool Max. Flow Rate 40.9 gpm
3rd Spool Pressure 4061 psi
Main Pump Max. Flow Rate 40.9 gpm
Main Drive Power Shift 4F/4R
Performance
Tipping Capacity with Bucket (Articulated) 21025 lbs
Tipping Capacity with Bucket (Straight) 23853 lbs
Max. Travel Speed – Forward 24.2 mph
Bucket Capacities 3.0-4.5 yd3 (2.2-3.4 m3)
Max. Travel Speed – Reverse 18.6 mph
Dimensions
Inside Turning Radius With Bucket 236.4 in
Articulation Angle 40 deg
Outside Turning Radius 212.7 in
Length without Attachment 256.6 in
Length with Standard Bucket 307.6 in
Width (with bucket) 100.4 in
Width (over tires) 98.4 in
Height with Operator Cab 130.3 in
Height to Bucket Hinge Pin 151.5 in
Dump Angle @ Maximum Height 48 deg
Ground Clearance 17 in
Rollback Angle 48 deg
Wheelbase 120 in
Tire Size 20.5R25 L3
Wheel Tread 75.9 in
